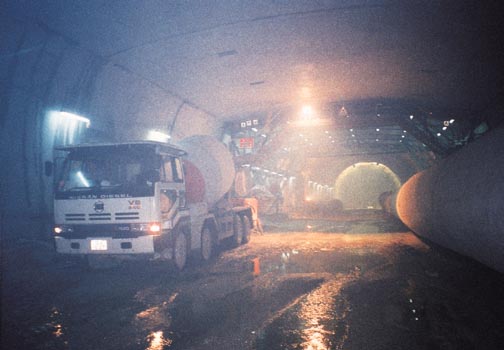

Formation of the concrete lining for the tunnel interior. The steel structure with rows of lights as seen in the photo is the track-mounted, highly automatic formwork. The sides and top of the formwork (with seals on the ends) are shutters which shape the tunnel section. By pumping in of the concrete, a 180 mm concrete lining is formed. Compaction is accomplished by the use of attach-on vibrators.
